Home /Products/PET Strap Extrusion Line/890KG Precision Pet Strap Machine Bobbin Winder Automatic Band Winding Machine

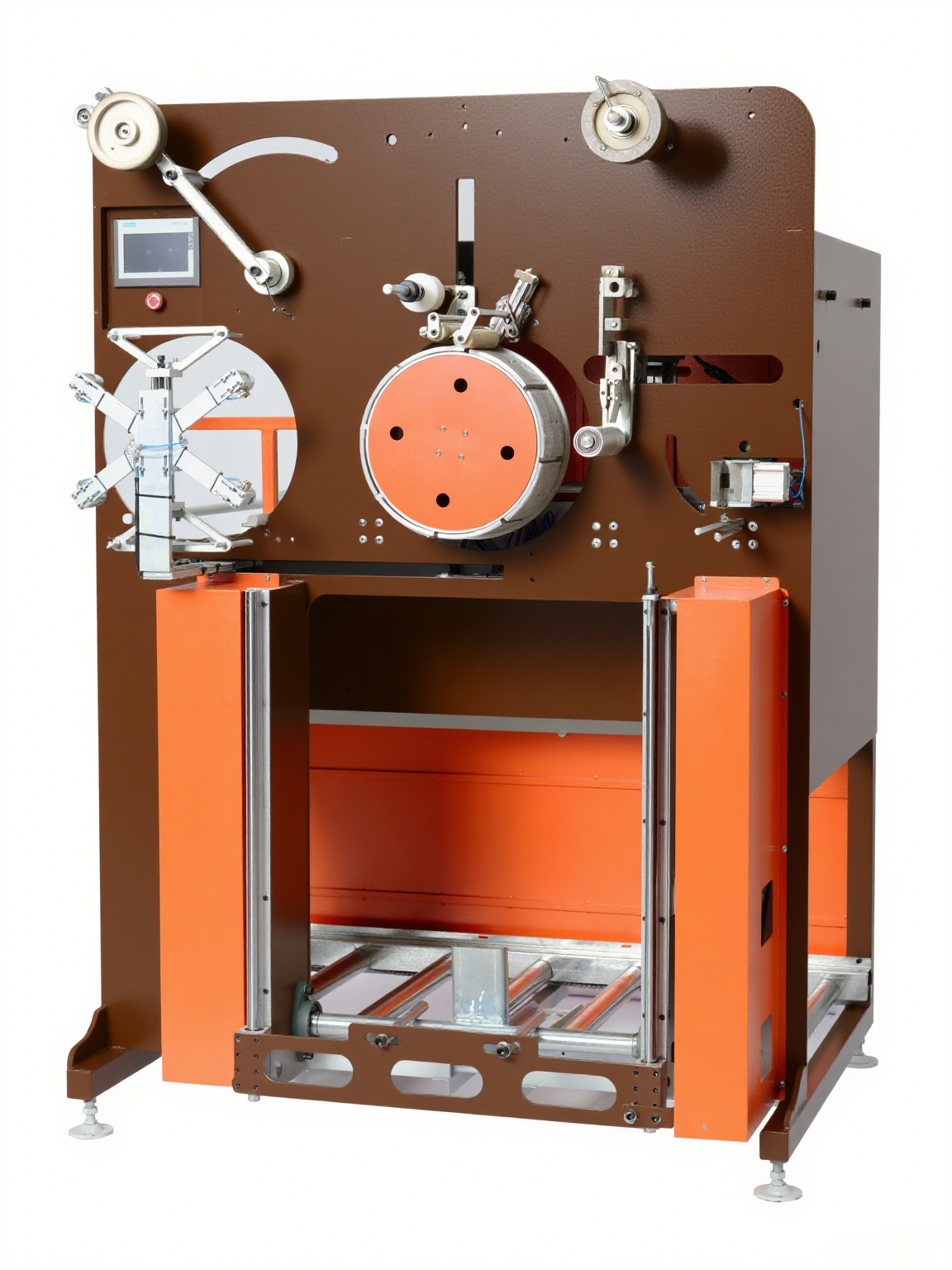

890KG Precision Pet Strap Machine Bobbin Winder Automatic Band Winding Machine

1 set
MOQ
7000 - 14000USD 1 set
Price
890KG Precision Pet Strap Machine Bobbin Winder Automatic Band Winding Machine
Features Gallery Product Description Chat Now
Features
Specifications
Place Of Origin: Guangdong, China
Brand Name: Yicheng
Voltage: 220V
Dimension(l*w*h): 1600mm * 1350mm * 2260mm
Warranty: 1 Year
Weight (KG): 890
Product Name: Automatic Strap Winder
Maximum Winding Diameter: 800MM
Rewind-up Range: 8MM-32MM
Length Of Paper Tube: ≤200MM
Input Power: 220V
Maximum Power: 2.0 KW
Maximum Operating Pressure Of The System: 0.8MPa
Minimum Operating Pressure Of The System: 0.6MPa
Machine Color: Standard Color (7035 Grey + Blue)
Highlight:

890KG pet strap machine

,

Precision Bobbin Winder

,

2.0KW Automatic Band winding machine
Basic Infomation
Place of Origin: china
Brand Name: United Win
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 30days
Product Description
890KG Weight Pet Automatic Strapping Banding Winders Precision Bobbin Winder Machine with 0.6MPa Minimum Operating Pressure
Products Description:
The 70kg fully automatic PET strapping rewinding machine revolutionizes production efficiency with its dual-mode (weight/length) operation and 720mm maximum winding capacity, seamlessly transitioning between core and coreless configurations to accommodate diverse manufacturing requirements. This intelligent system integrates swing-arm constant tension control with automated inflatable shaft technology and precision edge-winding mechanisms to guarantee flawless roll formation - eliminating overlaps, visible seams, and pattern inconsistencies - while its ergonomic design enables single-operator management of multiple units, dramatically reducing labor costs and enhancing productivity in high-volume strapping operations.
Main specifications and parameters
Appearance and dimensions 1650mm*1400mm*2200mm Maximum winding diameter 800MM
Machine weight About 890KG Rewind-up range 8MM-32MM
Input power 220V Length of paper tube ≤200MM
Maximum power 2.0KW Equipment model PETQZD-70
Maximum operating pressure of the system 0.8MPa Minimum operating pressure of the system 0.6MPa
890KG Precision Pet Strap Machine Bobbin Winder Automatic Band Winding Machine 0
