Home /Products/PET Strapping Band Machine/High Speed Full Automatic PET Double-station Strap Winding Machine with Maximum Winding Diameter of 800MM and PLC Control

High Speed Full Automatic PET Double-station Strap Winding Machine with Maximum Winding Diameter of 800MM and PLC Control

1 set
MOQ
7000 - 14000USD 1 set
Price
High Speed Full Automatic PET Double-station Strap Winding Machine with Maximum Winding Diameter of 800MM and PLC Control
Features Gallery Product Description Chat Now
Features
Specifications
Place Of Origin: Guangdong, China
Brand Name: Yicheng
Voltage: 380V
Dimension(l*w*h): 1200mm * 1100mm * 1800mm
Warranty: 1 Year
Weight (KG): 415
Product Name: PET Double-station Strap Winder
Maximum Winding Diameter: 800MM
Rewind-up Range: 9MM-32MM
Length Of Paper Tube: 150MM-190MM
Input Power: 380V
Maximum Power: 2.8 KW
Maximum Operating Pressure Of The System: 0.8MPa
Minimum Operating Pressure Of The System: 0.6MPa
Machine Color: Standard Color (7035 Grey + Blue)
Highlight:

automatic strap winding machine

,

automatic pallet strapping machine

,

high speed strap winding machine
Basic Infomation
Place of Origin: china
Brand Name: United Win
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 30days
Product Description
High Speed Full Automatic PET Double-station Strap Winding Machine with Maximum Winding Diameter of 800MM and PLC Control

Products Description:
The PETSA-SS Dual-Station Plastic Strapping Winding Machine represents a significant advancement in industrial strapping technology, featuring dual-mode (weight/length-based) operation with an 800mm maximum winding diameter that provides exceptional production flexibility. Its innovative dual-station configuration optimizes floor space utilization while enhancing workflow efficiency through simultaneous operation capabilities, complemented by an intelligent PLC touchscreen interface that consolidates all critical functions - including winding mode selection, strap width adjustment, and tension control - into a unified automated system. This precision-engineered solution eliminates manual gear changes while preventing material jams, ensuring consistently smooth winding performance through its advanced servo-driven mechanics that deliver both operational convenience and production efficiency for demanding industrial strapping applications.

                                                                 Main specifications and parameters



Appearance and dimensions
1200mm * 1100mm * 1800mm
Maximum winding diameter
800MM
Machine weight
About 415KG
Rewind-up range
9MM-32MM
Input power
380V
Length of paper tube
150MM-190MM
Maximum power
2.8 KW
Equipment model
PETSA-SS
Maximum operating pressure of the system
0.8MPa
Minimum operating pressure of the system
0.6MPa

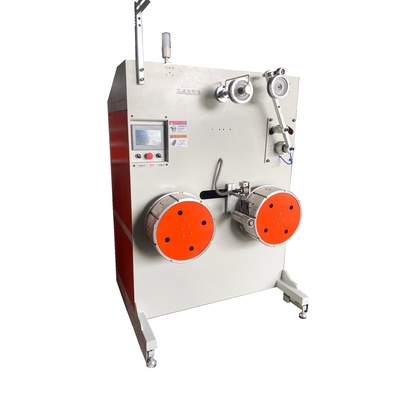

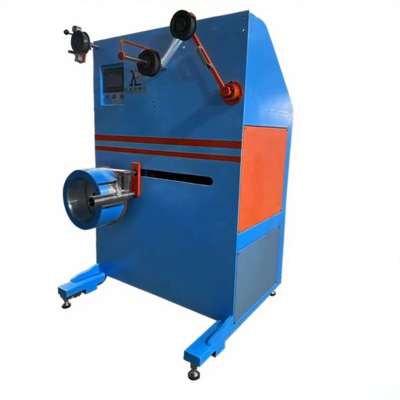

High Speed Full Automatic PET Double-station Strap Winding Machine with Maximum Winding Diameter of 800MM and PLC Control 0
High Speed Full Automatic PET Double-station Strap Winding Machine with Maximum Winding Diameter of 800MM and PLC Control 1
High Speed Full Automatic PET Double-station Strap Winding Machine with Maximum Winding Diameter of 800MM and PLC Control 2
High Speed Full Automatic PET Double-station Strap Winding Machine with Maximum Winding Diameter of 800MM and PLC Control 3
High Speed Full Automatic PET Double-station Strap Winding Machine with Maximum Winding Diameter of 800MM and PLC Control 4
High Speed Full Automatic PET Double-station Strap Winding Machine with Maximum Winding Diameter of 800MM and PLC Control 5
High Speed Full Automatic PET Double-station Strap Winding Machine with Maximum Winding Diameter of 800MM and PLC Control 6
High Speed Full Automatic PET Double-station Strap Winding Machine with Maximum Winding Diameter of 800MM and PLC Control 7
1Q:How do you make sure the machine quality?
To make sure the machine is qualified before deliver to our customer,we always arrange productiontesting,customer can assign the testing strap's specification.Customer could join the testing process orwe can provide video to show customer.

2Q: Do you have a professional team for the development of mechanical equipment?
Our R&D team comprises seasoned engineers and specialists from the plastic machinery sector. We have independently developed and manufactured the first fully intelligent strapping winders in China, exporting our products to Europe, the United States, and other regions.

3Q: What are the advantages of your strapping and packaging equipment?
Yicheng Automation,Committed to innovation, we continuously developing cutting-edge technologies in the packaging plastics machinery sector. With specialized expertise in fully intelligent plastic strapping rewinding systems, we deliver high cost-performance solutions engineered for customer success.

4Q: What are your after-sales services?
Warranty: One year from the delivery date indicated on the Bill of Lading (B/L).
During the warranty period, the seller will provide free parts and online service, except for any exclusions.
After the warranty period, the seller will supply parts at a cost.
Lifelong responsibility.
