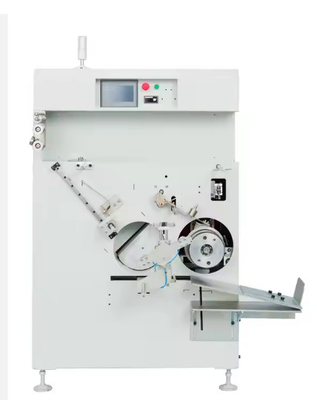

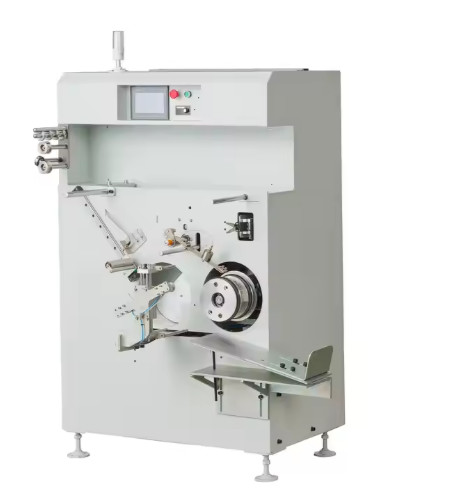

Automatic Polypropylene PP Strap Making Machine Yarn Coil PP Strap Winder

The PPFA-SH automated winding system delivers dual-mode (gravimetric/linear) operation with 500mm maximum coil capacity, featuring servo-controlled ball screw wire guidance for precision alignment and adaptive bandwidth adjustment across standard 200-250mm paper tube applications

• Wire Arrangement System: Utilizes a Delta servo motor-driven ball screw for high-precision wire arrangement, enabling seamless switching between different band widths and ensuring error-free operation
• Paper Tube Specifications: Compatible with paper tubes ranging from 160mm to 200mm, offering wide applicability.
• Winding Drum: Features a pneumatic expansion design, allowing for one-click clamping and releasing of paper tubes, ensuring efficient and convenient operation.
• Spindle Motor: Equipped with a Hochief servo motor, ensuring smooth and powerful performance.
• Touchscreen: Includes a Kunlun Tongtai series touchscreen, integrating functions such as weight mode, length mode, and strapping width selection for one-touch operation, providing intelligent and user-friendly control.
• Control Method: Combines speed mode and torque control to ensure neat and uniform winding, achieving perfect finished product quality.
• Wire Arrangement Mechanism: Uses a guide post and bushing connection structure, paired with special steel material, to ensure high-precision adjustment and long-term stability, supporting free adjustment of band widths from 5mm to 20mm.
• Conveyance Method: Employs a finished product conveyor belt design, enabling assembly line-style operations and significantly reducing manual intervention.
• Tube Loading Method: Adopts a four-point positioning fixation design, ensuring flat and tight loading of paper tubes, improving winding quality.
