Dual Station Plastic Strapping Winding Machine Manual Gear Replacement

PETSA-SS Dual-Station Plastic Strapping Winding Machine Manual gear replacement is eliminated, effectively preventing strapping accumulation and ensuring smooth and efficient winding

Descripition:

PETSA-SS Dual-Station Plastic Strapping Winding Machine,this equipment supports dual winding modes: weight-based and length-based, allowing flexible selection based on needs, with a maximum winding diameter of 800 mm. The dual-station design not only saves space but also significantly enhances operational convenience, optimizing worker efficiency.The machine is equipped with an intelligent PLC touchscreen control system, integrating functions such as weight mode, length mode, and strapping width selection, enabling one-touch operation for efficient and precise control. Manual gear replacement is eliminated, effectively preventing strapping accumulation and ensuring smooth and efficient winding.

Structural Design and Technical Features of Key Components:

Wire Arrangement System: Utilizes an Inovance servo motor-driven ball screw for high-precision wire arrangement, enabling seamless switching between different band widths.

Winding Drum: Features a pneumatic expansion design, allowing for one-click clamping and releasing of paper tubes. The dual-drum design enables quick and convenient roll change operations.

Touchscreen: Equipped with a Kunlun Tongtai series touchscreen, integrating functions such as weight mode, length mode, and strapping width selection for one-touch operation, ensuring intelligent and user-friendly control.

Control Method: Employs a dual-control system combining tension control and diameter calculation to ensure neat and uniform winding, achieving perfect finished product quality.

Wire Arrangement Mechanism: Uses a guide post and bushing connection structure, paired with special steel material, to ensure high-precision adjustment and long-term stability, supporting free adjustment of band widths from 8mm to 32mm.

Mechanical configuration (standard)

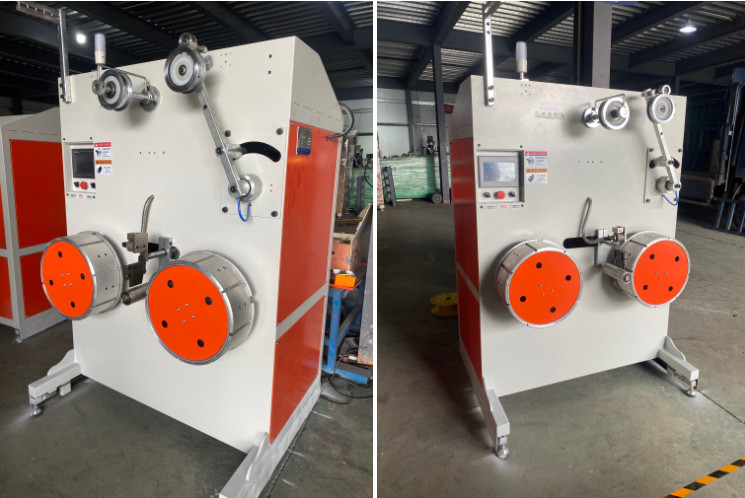

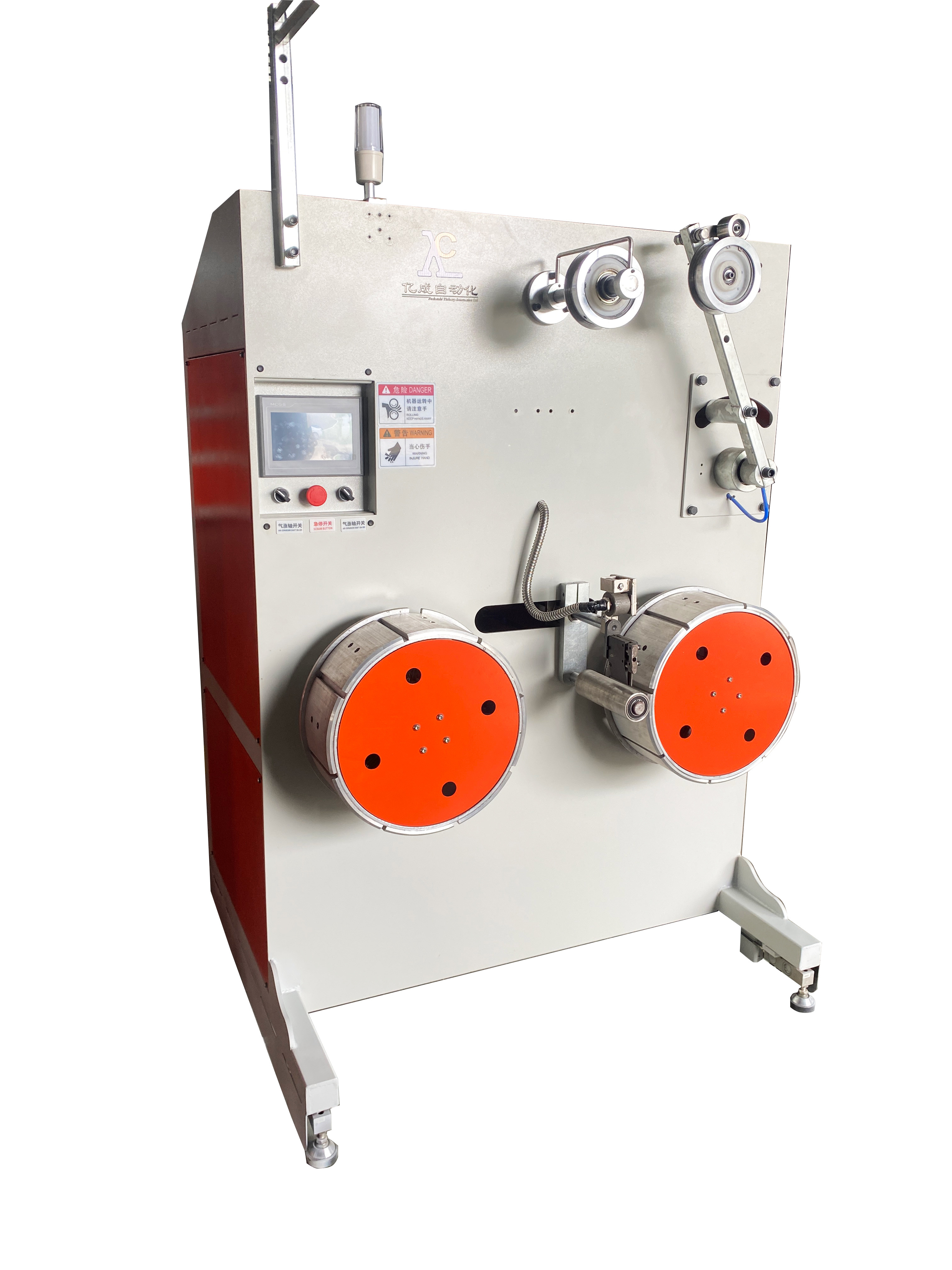

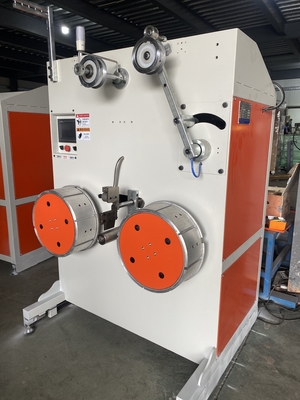

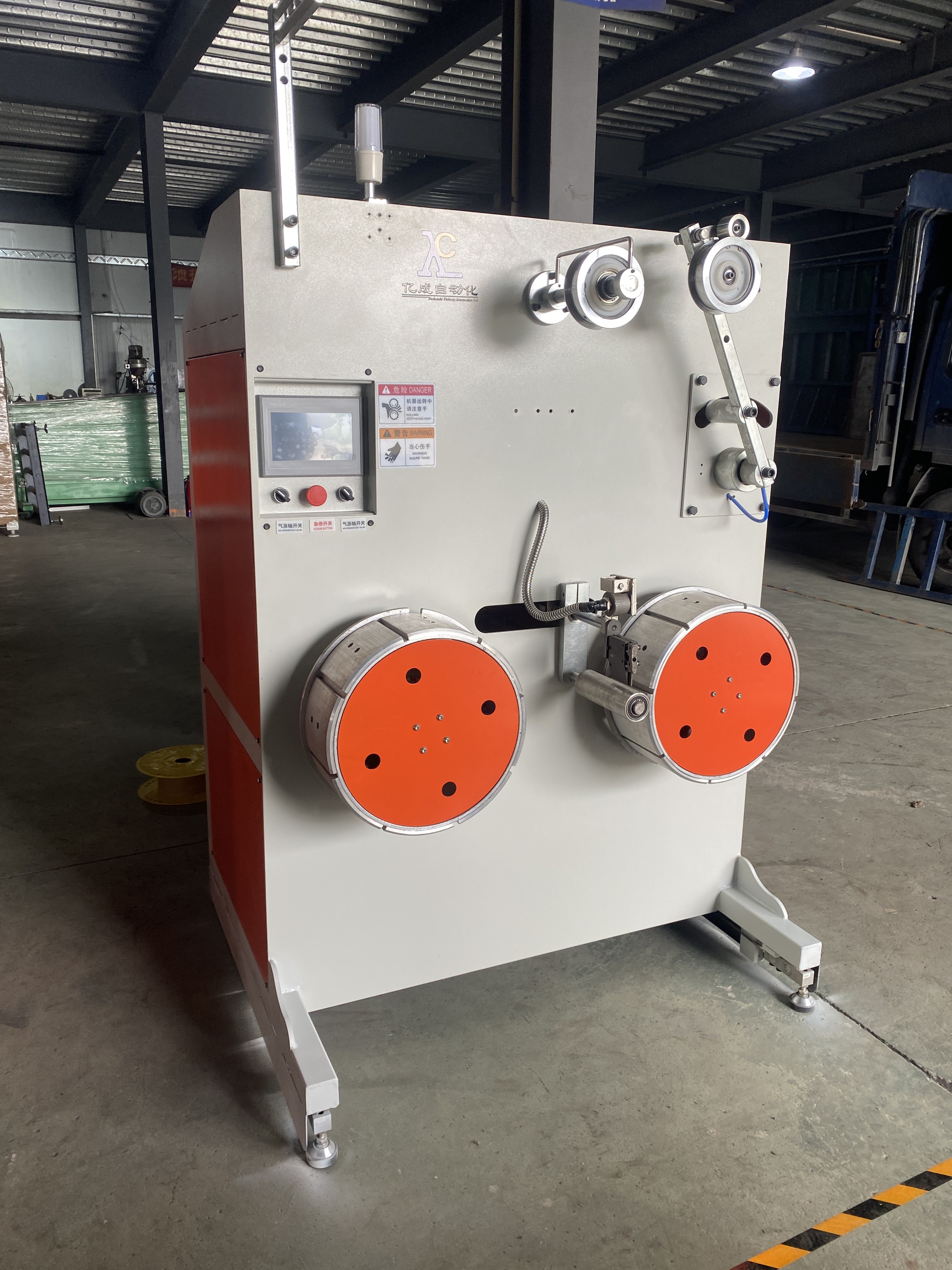

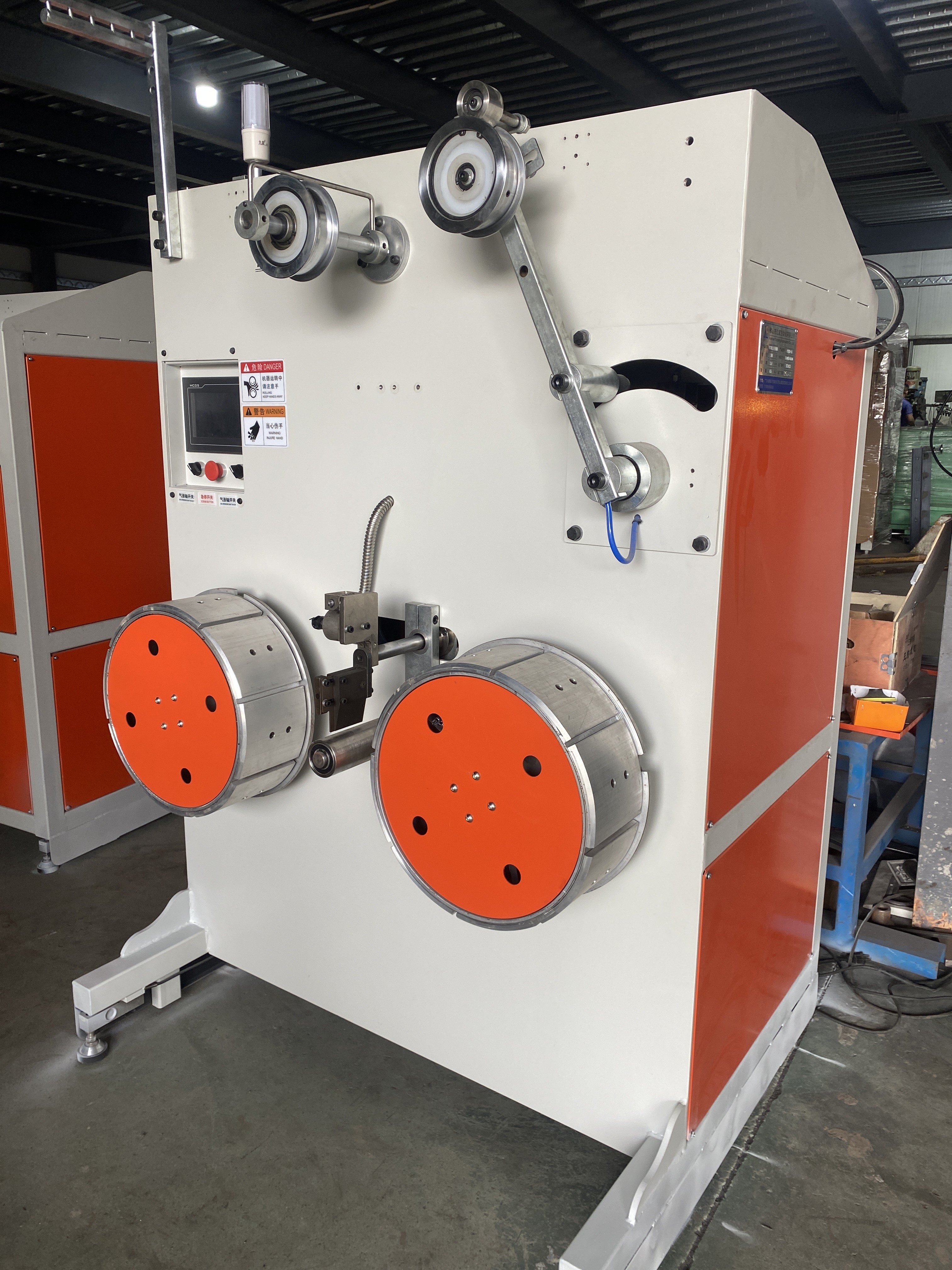

Machine Photo:

FAQ:

1Q:How do you make sure the machine quality?
To make sure the machine is qualified before deliver to our customer,we always arrange productiontesting,customer can assign the testing strap's specification.Customer could join the testing process orwe can provide video to show customer.

2Q: Do you have a professional team for the development of mechanical equipment?
Our R&D team comprises seasoned engineers and specialists from the plastic machinery sector. We have independently developed and manufactured the first fully intelligent strapping winders in China, exporting our products to Europe, the United States, and other regions.
