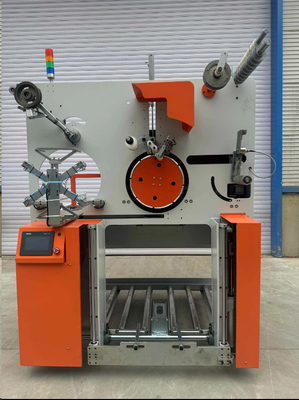

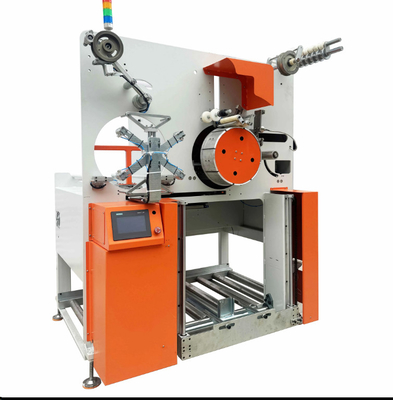

The 70kg fully automatic rewinding machine is a PET strapping rewinding machine with dual rewinding modes of weight and meter, with a maximum rewinding diameter of 720mm. The rewinding mode can be achieved with or without a paper core, achieving multiple uses for one machine. The rewinding machine's working state can be switched according to production needs. By using a swing arm to achieve constant tension winding, as well as a one key inflatable shaft winding and a side constant tension adhesive tape winding, the winding surface and side winding are ensured to be neat, with no visible turning marks or uniform winding patterns on the side, and no overlapping phenomenon. Realize one person operating multiple machines, reduce manual labor, and lower production costs
Appearance and dimensions | 1650mm*1400mm*2200mm | Maximum winding diameter | 800MM |
Machine weight | About 890KG | Rewind-up range | 8MM-32MM |
Input power | 220V | Length of paper tube | ≤200MM |
Maximum power | 2.0KW | Equipment model | PETQZD-70 |
Maximum operating pressure of the system | 0.8MPa | Minimum operating pressure of the system | 0.6MPa |
To make sure the machine is qualified before deliver to our customer,we always arrange productiontesting,customer can assign the testing strap's specification.Customer could join the testing process orwe can provide video to show customer.
Our R&D team comprises seasoned engineers and specialists from the plastic machinery sector. We have independently developed and manufactured the first fully intelligent strapping winders in China, exporting our products to Europe, the United States, and other regions.
Yicheng Automation,Committed to innovation, we continuously developing cutting-edge technologies in the packaging plastics machinery sector. With specialized expertise in fully intelligent plastic strapping rewinding systems, we deliver high cost-performance solutions engineered for customer success.
Warranty: One year from the delivery date indicated on the Bill of Lading (B/L).
During the warranty period, the seller will provide free parts and online service, except for any exclusions.
After the warranty period, the seller will supply parts at a cost.
Lifelong responsibility.
