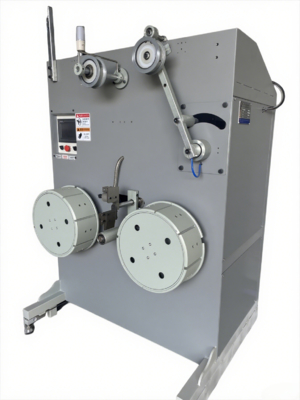

380V Toroidal Transformer Automatic Winding System High Efficiency Robust Heavy Duty for Industrial
Product Description:
The 380V Toroidal Transformer Automatic Winding System is a high-efficiency, heavy-duty solution engineered for precision winding of toroidal transformers in industrial-scale production environments. Powered by a robust 380V input and designed with automation at its core, this system ensures consistent coil formation, minimal material waste, and reliable long-term performance--making it ideal for manufacturers requiring durability, accuracy, and speed.
Advanced Technology for Precision Manufacturing
This system features a PLC-controlled automatic winding platform, allowing operators to adjust coil dimensions, winding speed, wire pitch, and turn count with high accuracy. Its intelligent interface ensures rapid setup for various transformer sizes, improving flexibility across product lines.
A servo-driven motor system maintains smooth tension and consistent wire placement, critical for the uniform performance of toroidal transformers. The winding head is engineered for clean wire layering without overlaps, even at high speeds, ensuring every coil meets strict quality standards.
Main specifications and parameters
| Appearance and dimensions |
1320mm*1100mm*1700mm |
Maximum winding diameter |
800MM |
| Machine weight |
About 600KG |
Rewind-up range |
8MM-32MM |
| Input power |
380V |
Length of paper tube |
≤200MM |
| Maximum power |
3KW |
Equipment model |
PETSA-SS |
| Maximum operating pressure of the system |
0.8MPa |
Minimum operating pressure of the system |
0.6MPa |
1Q:How do you make sure the machine quality?
To make sure the machine is qualified before deliver to our customer,we always arrange productiontesting,customer can assign the testing strap's specification.Customer could join the testing process orwe can provide video to show customer.
2Q: Do you have a professional team for the development of mechanical equipment?
Our R&D team comprises seasoned engineers and specialists from the plastic machinery sector. We have independently developed and manufactured the first fully intelligent strapping winders in China, exporting our products to Europe, the United States, and other regions.
3Q: What are the advantages of your strapping and packaging equipment?
Yicheng Automation,Committed to innovation, we continuously developing cutting-edge technologies in the packaging plastics machinery sector. With specialized expertise in fully intelligent plastic strapping rewinding systems, we deliver high cost-performance solutions engineered for customer success.
4Q: What are your after-sales services?
Warranty: One year from the delivery date indicated on the Bill of Lading (B/L).
During the warranty period, the seller will provide free parts and online service, except for any exclusions.
After the warranty period, the seller will supply parts at a cost.
Lifelong responsibility.
