Precision 380V Toroidal Winder Automatic 9-32MM Range Energy Efficient Operation

1 set
MOQ
7000 - 14000USD 1 set
Price
Precision 380V Toroidal Winder Automatic 9-32MM Range Energy Efficient Operation
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: PET Strapping Band Machine
Dimension(l*w*h): 1201mm * 1101mm * 1800mm
Weight (KG): 415KG
Maximum Winding Diameter: 800MM
Rewind-up Range: 9MM-32MM
Length Of Paper Tube: 150MM-190.4MM
Maximum Power: 2.8KW
Maximum Operating Pressure Of The System: 0.8MPa
Minimum Operating Pressure Of The System: 0.64MPa
Highlight:

precision pallet strapping machine

,

precision pet strapping band machine

,

380v pallet strapping machine

Basic Infomation
Place of Origin: china
Brand Name: United Win
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 30days
Product Description
Precision 380V Toroidal Winder Automatic 9-32MM Range Energy Efficient Operation
Products Description:

The Precision 380V Toroidal Winder is a fully automatic coil winding machine designed for high-accuracy winding of toroidal transformers in the 9 -32mm range. With its energy-efficient operation, durable construction, and advanced control systems, this machine is ideal for industrial manufacturers seeking reliable, consistent output while reducing energy consumption and maintenance costs.

Advanced Control & Precision Engineering: Equipped with a PLC control system and a servo-driven motor, this automatic winder ensures tight control over winding speed, tension, and coil alignment. The result is highly uniform, precision-wound coils that meet stringent electrical performance standards. The HMI touchscreen interface allows operators to quickly configure parameters, monitor performance in real time, and switch between winding profiles with minimal downtime.

Designed for long-term, continuous use, the machine features a low-vibration frame, reducing mechanical wear and enhancing coil consistency across extended production cycles.

Main specifications and parameters
Appearance and dimensions 1200mm * 1100mm * 1800mm Maximum winding diameter 800MM
Machine weight About 415KG Rewind-up range 9MM-32MM
Input power 380V Length of paper tube 150MM-190MM
Maximum power 2.8 KW Equipment model PETSA-SS
Maximum operating pressure of the system 0.8MPa Minimum operating pressure of the system 0.6MPa

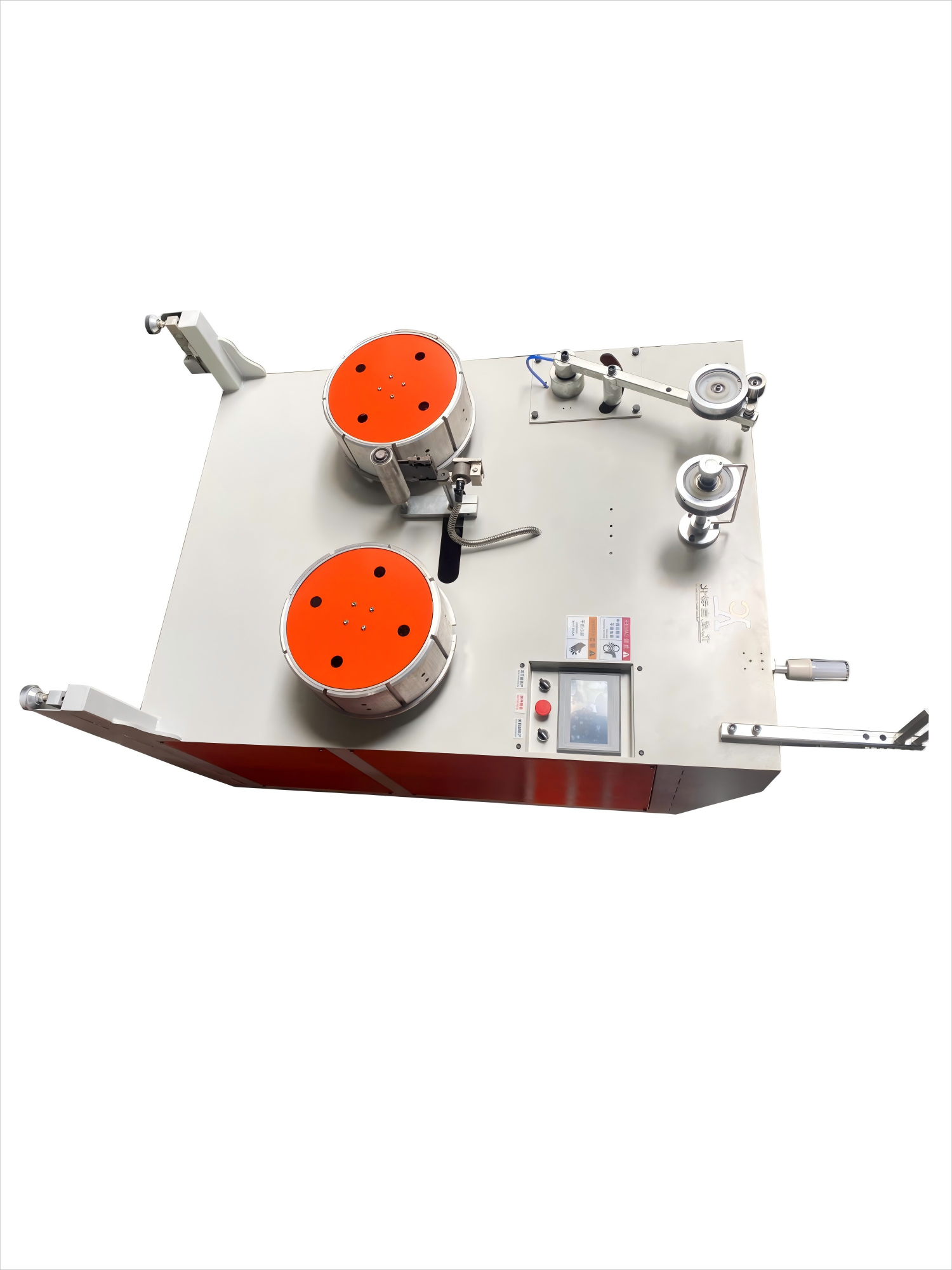

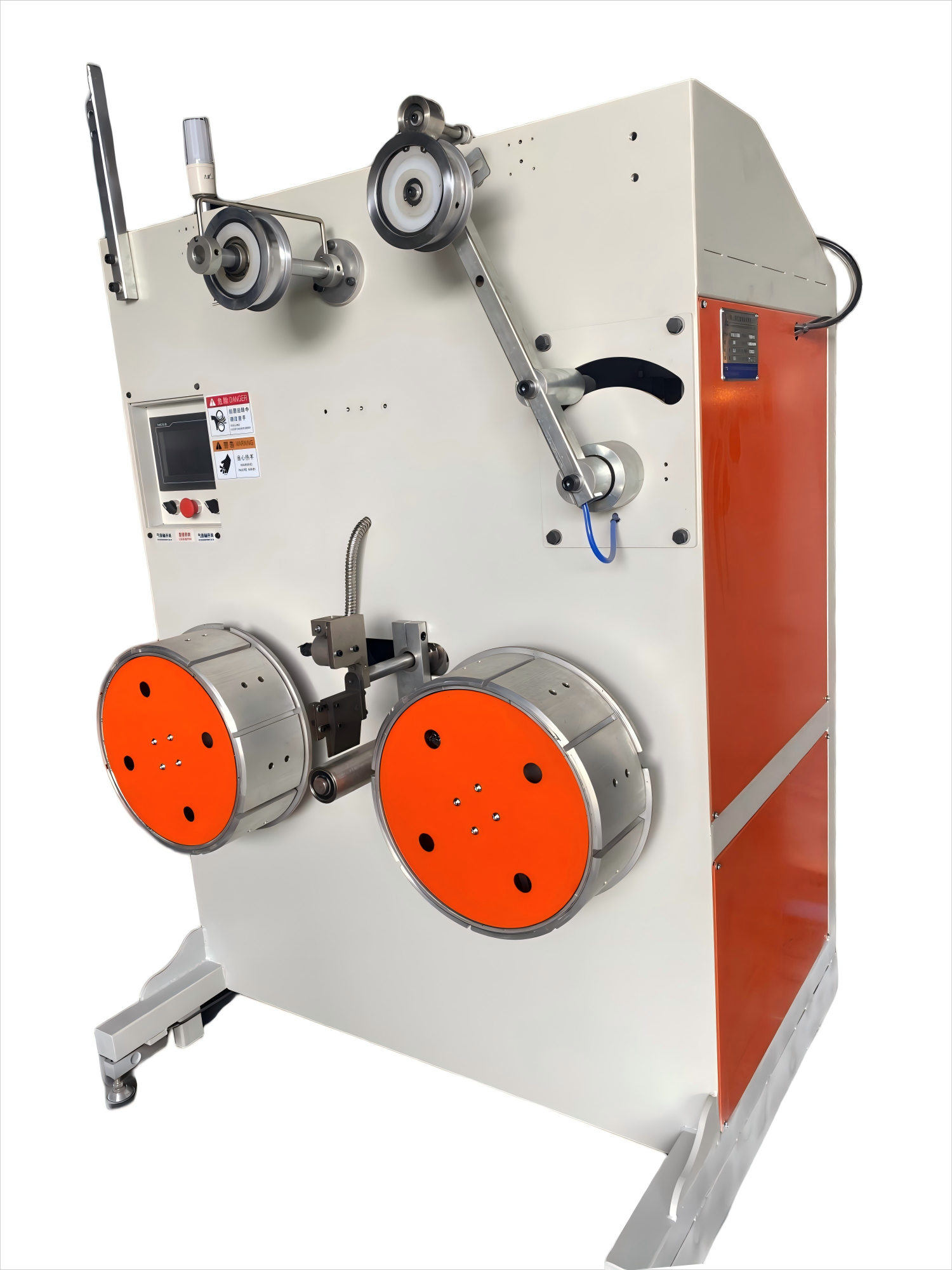

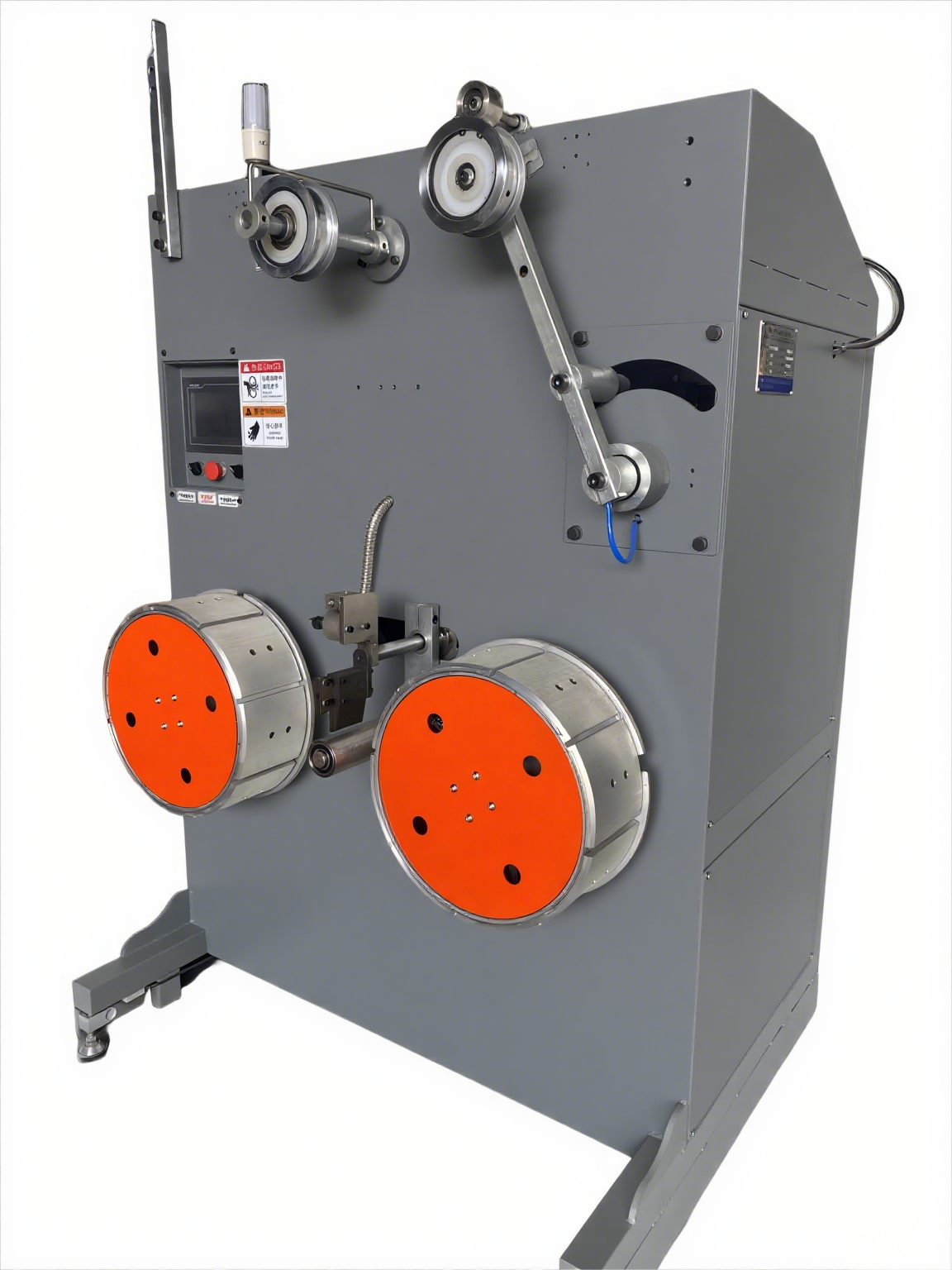

Precision 380V Toroidal Winder Automatic 9-32MM Range Energy Efficient Operation 0 Precision 380V Toroidal Winder Automatic 9-32MM Range Energy Efficient Operation 1 Precision 380V Toroidal Winder Automatic 9-32MM Range Energy Efficient Operation 2 Precision 380V Toroidal Winder Automatic 9-32MM Range Energy Efficient Operation 3 Precision 380V Toroidal Winder Automatic 9-32MM Range Energy Efficient Operation 4 Precision 380V Toroidal Winder Automatic 9-32MM Range Energy Efficient Operation 5 Precision 380V Toroidal Winder Automatic 9-32MM Range Energy Efficient Operation 6 Precision 380V Toroidal Winder Automatic 9-32MM Range Energy Efficient Operation 7
1Q: How do you make sure the machine quality?

To make sure the machine is qualified before deliver to our customer, we always arrange production testing, customer can assign the testing strap's specification. Customer could join the testing process or we can provide video to show customer.

2Q: Do you have a professional team for the development of mechanical equipment?

Our R&D team comprises seasoned engineers and specialists from the plastic machinery sector. We have independently developed and manufactured the first fully intelligent strapping winders in China, exporting our products to Europe, the United States, and other regions.

3Q: What are the advantages of your strapping and packaging equipment?

Yicheng Automation, Committed to innovation, we continuously developing cutting-edge technologies in the packaging plastics machinery sector. With specialized expertise in fully intelligent plastic strapping rewinding systems, we deliver high cost-performance solutions engineered for customer success.

4Q: What are your after-sales services?

Warranty: One year from the delivery date indicated on the Bill of Lading (B/L).
During the warranty period, the seller will provide free parts and online service, except for any exclusions.
After the warranty period, the seller will supply parts at a cost.
Lifelong responsibility.

Minimum operating pressure of the system PETSA-SS
