0.6MPa PET Armature Coil Winding System Accurate Winding Continuous Operation For Packaging

1 set
MOQ
7000 - 14000USD 1 set
Price
0.6MPa PET Armature Coil Winding System Accurate Winding Continuous Operation For Packaging
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: PET Strapping Band Machine
Voltage: 380V
Dimension(l*w*h): 2100.3mm*2051mm*910mm
Weight (KG): 1200
Maximum Winding Diameter: 1200MM
Rewind-up Range: 9MM-31.3MM
Length Of Paper Tube: 190MM-300.3MM
Input Power: 380V
Maximum Operating Pressure Of The System: 0.8MPa
Minimum Operating Pressure Of The System: 0.5MPa
Highlight:

PET armature coil winding system

,

0.6MPa PET winding machine

,

continuous operation PET strapping machine
Basic Infomation
Place of Origin: china
Brand Name: United Win
Model Number: PETSA-350
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 30days
Product Description
0.6MPa PET Armature Coil Winding System
The 0.6MPa PET Armature Coil Winding System is a professional winding solution engineered for PET strapping and modern packaging production lines that demand high accuracy, stable performance, and uninterrupted operation. Designed to work under a standard pneumatic pressure of 0.6MPa, this system ensures precise coil formation and smooth material handling throughout long production cycles.
Winding Principle and Control Design
The system adopts a pneumatic tension control structure that maintains consistent winding force during the entire process. Accurate winding is achieved through optimized guide paths and a stable armature mechanism, allowing PET straps to be wound evenly without overlapping, distortion, or edge damage. This precision directly improves coil appearance, storage efficiency, and downstream packaging performance.
Continuous Operation Capability
The heavy-duty mechanical structure and smooth-running components enable the system to operate reliably for extended periods. Reduced vibration and balanced rotation help minimize mechanical stress, ensuring stable winding quality even during high-speed, non-stop production. This makes the system especially suitable for automated PET strap production lines where continuity and efficiency are critical.
Application Fields
The 0.6MPa PET armature coil winding system is widely used in packaging machinery for logistics, building materials, food and beverage, metal products, and industrial goods. It supports the production of high-quality PET strapping used for bundling, palletizing, and securing products during transportation, helping improve overall packaging safety and efficiency.
Technical Specifications
Specification Value
Appearance and Dimensions 2100mm × 2050mm × 910mm
Machine Weight Approximately 1200KG
Input Power 380V
Maximum Power 4KW
Maximum System Operating Pressure 0.8MPa
Minimum System Operating Pressure 0.6MPa
Maximum Winding Diameter 1200MM
Rewind-up Range 8MM-32MM
Length of Paper Tube 190MM-300MM
Equipment Model PETSA-350
0.6MPa PET Armature Coil Winding System Accurate Winding Continuous Operation For Packaging 0

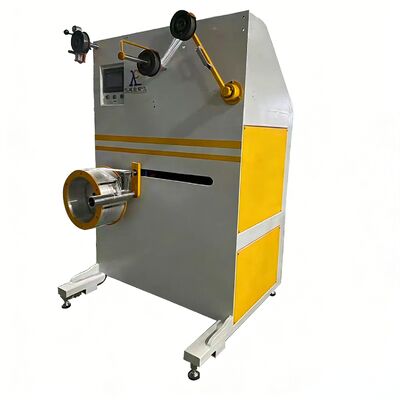

Operational view showing winding mechanism and control components
0.6MPa PET Armature Coil Winding System Accurate Winding Continuous Operation For Packaging 1
Technical diagram illustrating dimensions and component layout
