Name: 0.6MPa PET Armature Coil Winding System Fast Continuous Running High Precision Control Reliable Performance For Packaging
Brand: Foshan Yicheng Automation Co., Ltd.
SKU: PETSA-350
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: PET Strapping Band Machine

Voltage: 380V

Dimension(l*w*h): 2100mm*2050mm*910mm

Weight (KG): 1205

Maximum Winding Diameter: 1200MM

Rewind-up Range: 9MM-31.7MM

Length Of Paper Tube: 191MM-300MM

Input Power: 380V

Maximum Operating Pressure Of The System: 0.8MPa

Minimum Operating Pressure Of The System: 0.5MPa

Basic Infomation

Place of Origin: china

Brand Name: United Win

Model Number: PETSA-350

Payment & Shipping Terms

Packaging Details: Wooden Case

Delivery Time: 30days

Gallery

0.6MPa PET Armature Coil Winding System Fast Continuous Running High Precision Control Reliable Performance For Packaging

Product Description

0.6MPa PET Armature Coil Winding System Fast Continuous Running High Precision Control Reliable Performance For Packaging

0.6MPa PET Armature Coil Winding System with Fast Continuous Running High Precision Control and Reliable Performance is a professional winding equipment tailored for packaging industry applications. Adopting advanced CNC control technology and precision mechanical transmission structure, it integrates automatic wire arrangement, tension control and speed regulation functions, realizing high-efficiency and high-precision winding of PET armature coils, which effectively improves production efficiency and product consistency.

Key product parameters include 0.6MPa working pressure, fast continuous running capability with adjustable speed range, high precision control with error within ±0.01mm, and stable operation performance suitable for long-term continuous work. Strict quality control measures are implemented throughout the production process, from raw material selection to component assembly and final debugging, each system undergoes strict performance testing to ensure it meets industrial use standards and provides reliable and stable operation.

Its core functions focus on fast continuous running to reduce production cycle, high precision control to ensure coil winding accuracy, and reliable performance to avoid equipment failure during operation. The system is equipped with intelligent monitoring and fault alarm functions, which can timely detect and remind abnormal conditions, reducing maintenance costs and improving production continuity.

Widely applied in packaging machinery manufacturing, it is suitable for winding PET armature coils used in packaging motors, conveyor belts, packaging pumps and other packaging equipment. This 0.6MPa PET Armature Coil Winding System combines fast continuous running, high precision control and reliable performance, providing a high-efficiency, stable and cost-effective solution for packaging industry coil processing, helping enterprises improve production quality and enhance market competitiveness.

ion.

Technical Specifications

Specification	Value
Appearance and Dimensions	2100mm × 2050mm × 910mm
Machine Weight	Approximately 1200KG
Input Power	380V
Maximum Power	4KW
Maximum System Operating Pressure	0.8MPa
Minimum System Operating Pressure	0.6MPa
Maximum Winding Diameter	1200MM
Rewind-up Range	8MM-32MM
Length of Paper Tube	190MM-300MM
Equipment Model	PETSA-350

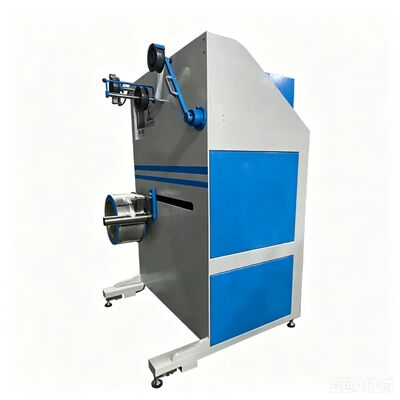

Operational view showing winding mechanism and control components

Technical diagram illustrating dimensions and component layout
