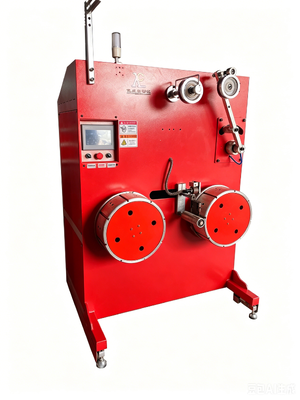

Name: Automatic Strap Winder with 1200MM Winding Diameter 380V Power High Output for PET Strapping Band
Brand: Foshan Yicheng Automation Co., Ltd.
SKU: PETSA-350
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: PET Strapping Band Machine

Voltage: 380V

Dimension(l*w*h): 2100.5mm*2050mm*908mm

Weight (KG): 1200

Maximum Winding Diameter: 1190MM

Rewind-up Range: 9MM-31.2MM

Length Of Paper Tube: 190MM-300.2MM

Input Power: 380V

Maximum Operating Pressure Of The System: 0.8MPa

Minimum Operating Pressure Of The System: 0.5MPa

Highlight:

1200MM Winding Diameter Automatic Strap Winder

380V Power PET Strapping Band Machine

High Output Strap Winding Machine

Basic Infomation

Place of Origin: china

Brand Name: United Win

Model Number: PETSA-350

Payment & Shipping Terms

Packaging Details: Wooden Case

Delivery Time: 30days

Gallery

Automatic Strap Winder with 1200MM Winding Diameter 380V Power High Output for PET Strapping Band

Product Description

Large Dimension Automatic Strap Winder 1200MM Winding Diameter 380V Power High Output Reliable Operation For Strap Handling

Large Dimension Automatic Strap Winder with 1200MM winding diameter and 380V industrial power supply features high output and reliable operation as a professional automated device for industrial strap handling. Adopting advanced frequency conversion speed control technology and heavy-duty integrated welding process, the machine is built with thickened steel frame and precision transmission components. Optimized mechanical balance structure effectively reduces running vibration and friction loss, supporting long-term high-load operation while maintaining stable winding accuracy and consistent finished coil quality.

This high-output strap winder adopts standard industrial configuration parameters, including stable 380V industrial power supply and 1200MM maximum winding diameter, fully catering to large-size coil processing requirements for PET straps and packaging lashing straps. It supports continuous high-speed winding to greatly improve single-shift production output. Strict standardized quality control runs through the whole manufacturing process, including component precision testing, power system debugging, mechanical calibration and continuous aging tests to ensure stable mechanical performance and low failure rates in industrial scenarios.

Equipped with practical core functions, the equipment delivers stable power output and high production efficiency to realize high-volume strap handling. Its reliable operational design prevents strap deviation, loose winding and material waste, ensuring uniform coil density and neat shaping. The large-dimension structural layout provides sufficient working space for large coil winding, improving production flexibility and compatibility with various strap specifications.

Ideal for strap manufacturing, packaging material processing and industrial auxiliary production, this automatic strap winder offers stable, high-output and cost-effective winding solutions. With its 380V power stability, 1200MM large winding capacity and durable reliable operation, it effectively optimizes strap handling workflows, upgrades production efficiency and reduces operational costs for modern industrial enterprises.

Technical Specifications

Specification	Value
Appearance and Dimensions	2100mm × 2050mm × 910mm
Machine Weight	Approximately 1200KG
Input Power	380V
Maximum Power	4KW
Maximum System Operating Pressure	0.8MPa
Minimum System Operating Pressure	0.6MPa
Maximum Winding Diameter	1200MM
Rewind-up Range	8MM-32MM
Length of Paper Tube	190MM-300MM
Equipment Model	PETSA-350

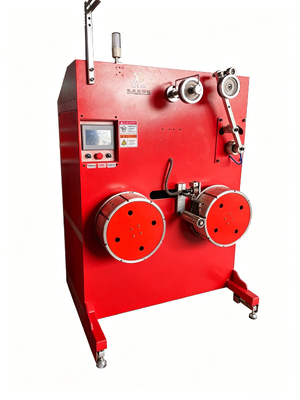

Operational view showing winding mechanism and control components

Technical diagram illustrating dimensions and component layout
