Name: Reliable PET Strapping Band Machine with 1200MM Winding Diameter 0.8MPa Pressure and Constant Output
Brand: CHANGZHOU UNITED WIN PACK CO.,LTD
SKU: PETSA-350
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: PET Strapping Band Machine

Voltage: 380V

Dimension(l*w*h): 2102mm*204mm*911mm

Weight (KG): 1191

Maximum Winding Diameter: 1201MM

Rewind-up Range: 9MM-31.7MM

Length Of Paper Tube: 190MM-300.9MM

Input Power: 380V

Maximum Operating Pressure Of The System: 0.8MPa

Minimum Operating Pressure Of The System: 0.5MPa

Highlight:

1200MM Maximum Winding Diameter PET Strapping Band Machine

0.8MPa Maximum Operating Pressure PET Strapping Band Machine

Constant Output PET Strapping Band Machine

Basic Infomation

Place of Origin: china

Brand Name: United Win

Model Number: PETSA-350

Payment & Shipping Terms

Packaging Details: Wooden Case

Delivery Time: 30days

Gallery

Reliable PET Strapping Band Machine with 1200MM Winding Diameter 0.8MPa Pressure and Constant Output

Product Description

Reliable Extrusion PET Strap Processing Machine with Constant Output Minimal Downtime for Packaging Band Fabrication

Reliable Extrusion PET Strap Processing Machine is a high-stability industrial solution optimized for professional packaging band fabrication, delivering constant output and minimal downtime for long-term batch production. This equipment adopts upgraded balanced extrusion and intelligent constant-temperature plasticizing technology, paired with precision screw homogenization and steady flow channel design. The refined material melting and traction molding process ensures uniform PET material plasticization and consistent extrusion volume, effectively preventing uneven thickness, material surges and molding fluctuations. Optimized mechanical transmission and intelligent fault self-detection architecture greatly enhance operational reliability for continuous industrial running.

This industrial PET strap processing machine maintains stable core operational parameters to support long-hour uninterrupted production with constant output accuracy. It allows flexible adjustment of strap width and thickness to cover diverse packaging band specifications and adapts seamlessly to virgin PET particles and recycled PET raw materials. Strict full-standard quality control is enforced throughout production, including extrusion stability calibration, load endurance testing, operational failure inspection and 24-hour continuous aging tests. Each unit is fully debugged and calibrated before shipment to ensure reliable performance and ultra-low downtime in formal industrial scenarios.

Equipped with practical core advantages, the machine’s reliable extrusion system guarantees uniform surface flatness, stable tensile performance and consistent dimensional accuracy of finished straps, reducing defective rates and raw material waste. Constant output capability stabilizes production rhythm and improves overall batch throughput. Minimal downtime design lowers equipment failure probability, reduces maintenance frequency and avoids unnecessary production shutdowns, greatly improving operational efficiency and reducing long-term production costs.

Suitable for packaging material manufacturing, plastic processing and industrial strapping production fields, this high-reliability processing equipment fully meets mass and high-frequency packaging band fabrication demands. Combining reliable extrusion performance, constant output stability and minimal downtime operation, the PET strap processing machine provides efficient, stable and cost-effective manufacturing solutions, helping enterprises optimize production efficiency and strengthen product market competitiveness.

Specification	Value
Appearance and Dimensions	2100mm × 2050mm × 910mm
Machine Weight	Approximately 1200KG
Input Power	380V
Maximum Power	4KW
Maximum System Operating Pressure	0.8MPa
Minimum System Operating Pressure	0.6MPa
Maximum Winding Diameter	1200MM
Rewind-up Range	8MM-32MM
Length of Paper Tube	190MM-300MM
Equipment Model	PETSA-350

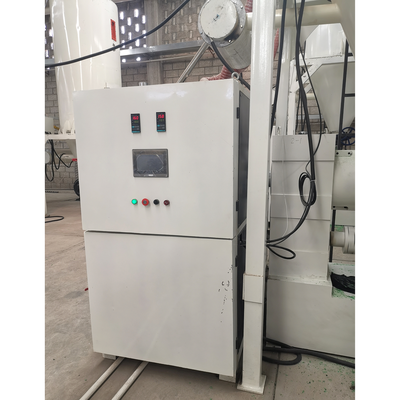

Operational view showing winding mechanism and control components

Technical diagram illustrating dimensions and component layout
