1900mm 700KG PET Strap Winder 5KW Semi Automatic Strapping Winders

PETSA-350 Semi-Automatic Strapping Winders

Descripition:

The 350 kg Class Winding Machine is a high-performance device specifically designed for PET strapping, with a maximum winding diameter of 1200 mm, perfectly meeting the production needs of heavyweight large rolls. Equipped with an intelligent operation system and a high-precision constant tension control system, it ensures even material distribution and neat edges during the winding process, significantly improving product quality.

Featuring an integrated touchscreen control interface, the machine offers simple and intuitive operation, supporting parameter customization and real-time monitoring for quick adjustments and production oversight. Built with premium materials and advanced manufacturing techniques, it guarantees long-term stable operation and significantly reduces maintenance costs, making it an ideal choice for efficient and reliable production.

I. Structural Design and Technical Features of Key Components

      Wire Arrangement System: Utilizes a servo motor-driven ball screw for high-precision wire arrangement, enabling seamless switching       between different band widths.

• Winding Drum: Features a pneumatic expansion design, allowing for one-click clamping and releasing of paper tubes, ensuring efficient and convenient operation.
• Spindle Motor: Combines a servo motor with a precision planetary reducer, ensuring smooth operation and powerful performance.
• Touchscreen: Equipped with an intelligent touchscreen for one-touch setting of parameters such as band width, offering simple and intuitive operation.
• Control Method: Employs constant tension control to ensure neat and uniform winding, achieving perfect finished product quality.
• Wire Arrangement Mechanism: Uses a guide post and bushing connection structure, paired with special steel material, to ensure high-precision adjustment and long-term stability, supporting free

•

• II. Main specifications and parameters

  Appearance and dimensions	1400mm*1200mm*1900mm	Maximum winding diameter	1200MM
  Machine weight	About 700KG	Rewind-up range	8MM-32MM
  Input power	380V	Length of paper tube	≤300MM
  Maximum power	5.0 KW	Equipment model	PETSA-350
  Maximum operating pressure of the system	0.8MPa	Minimum operating pressure of the system	0.6MPa

• III. Mechanical configuration (standard)

  Electrical system	Airtac,Yangming,Mean Well,etc. Band	Cabling system	HCFA servo motor + ball screw
  Control system	Siemens,Inovance,etc. Brand	Control panel	Human Machine Interface
  Weighing system	Keli sensor	Winding main motor	servo motor
  Warning light	Equipped with three-color warning light	Machine power supply	Power supply and voltage range: AC single-phase 220V±10% 50Hz
  Normal conditions	0～40℃ Humidity:≤85%	Machine color	Standard color (7035 Grey + Tangerine Red)

  Machine colors can be changed according to the color palette provided by the user.

•

• IV. Random technical documents

• Machine instruction manual (including mechanical and electrical parts and safety instructions)
• Quick installation guide
• List of wearing parts

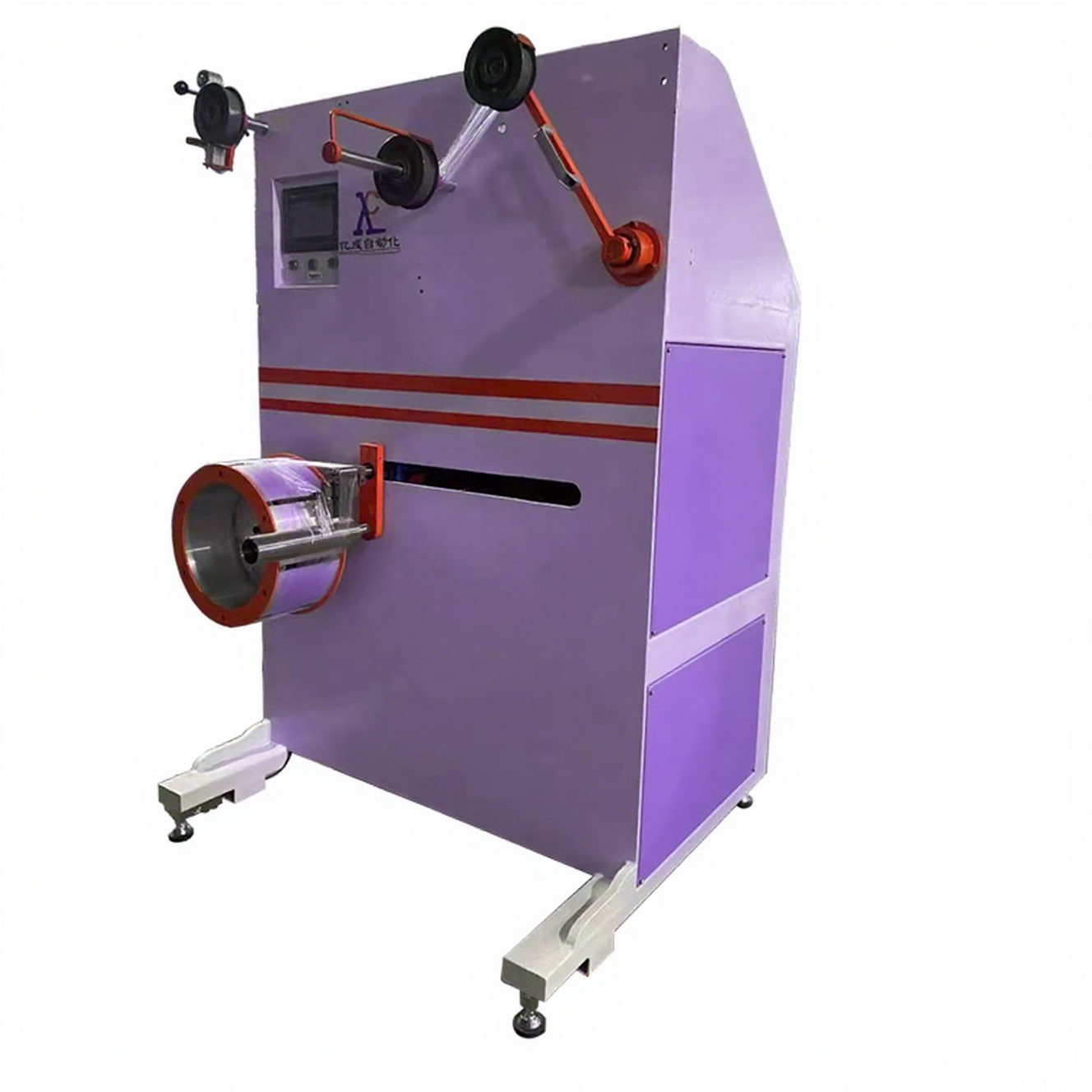

Machine photo:

FAQ:
